SmartDisplay is an open-source, modular firmware based on ESPHome and LVGL 8 designed for the SP-ESP32-S3-1.28-BOX circular smart display.
It repurposes the popular AliExpress Xiaozhi AI desktop box into a 100% local, private, full-featured Home Assistant notification display, desktop clock, weather widget, and TTS voice announcement speaker.

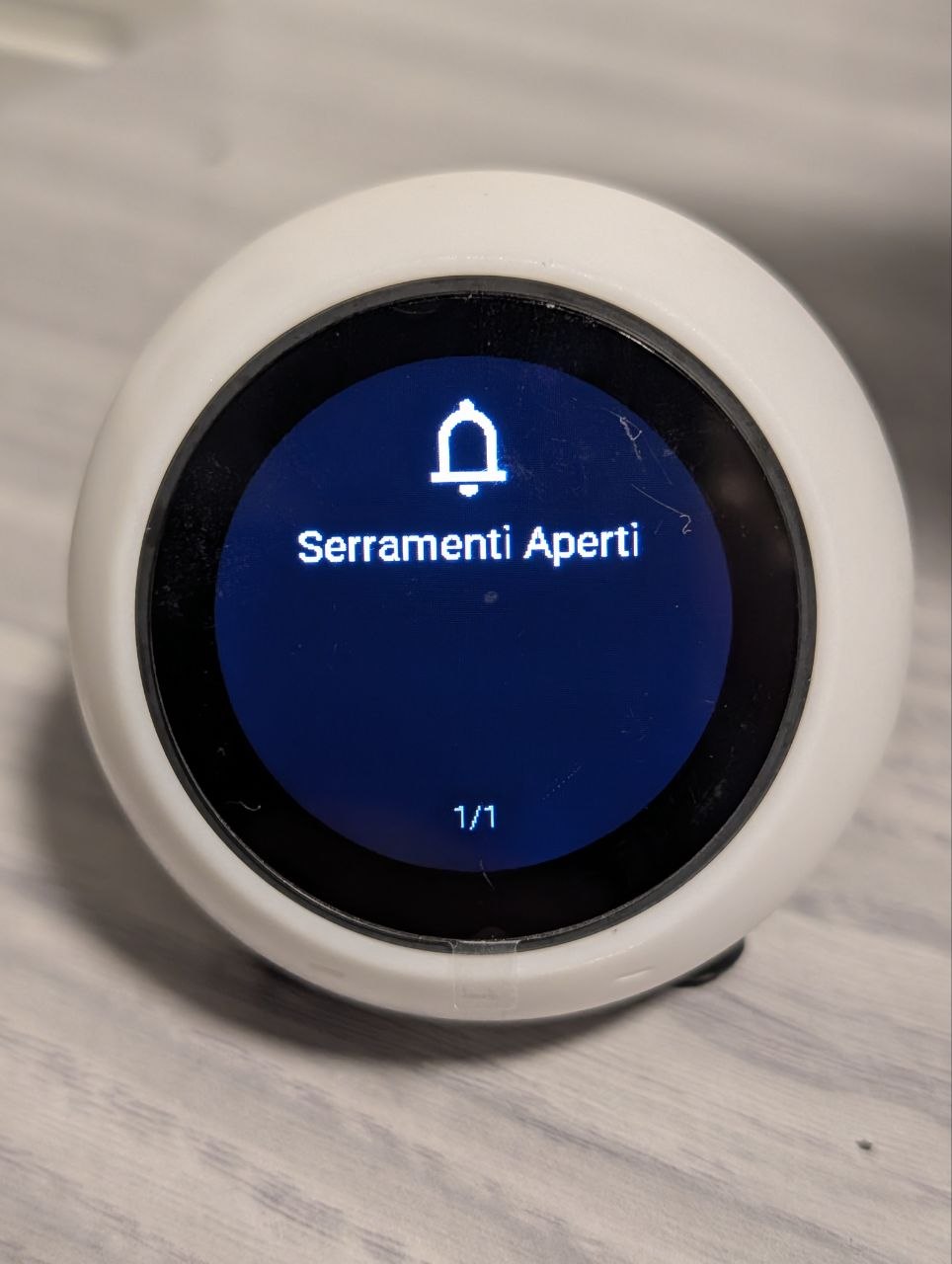

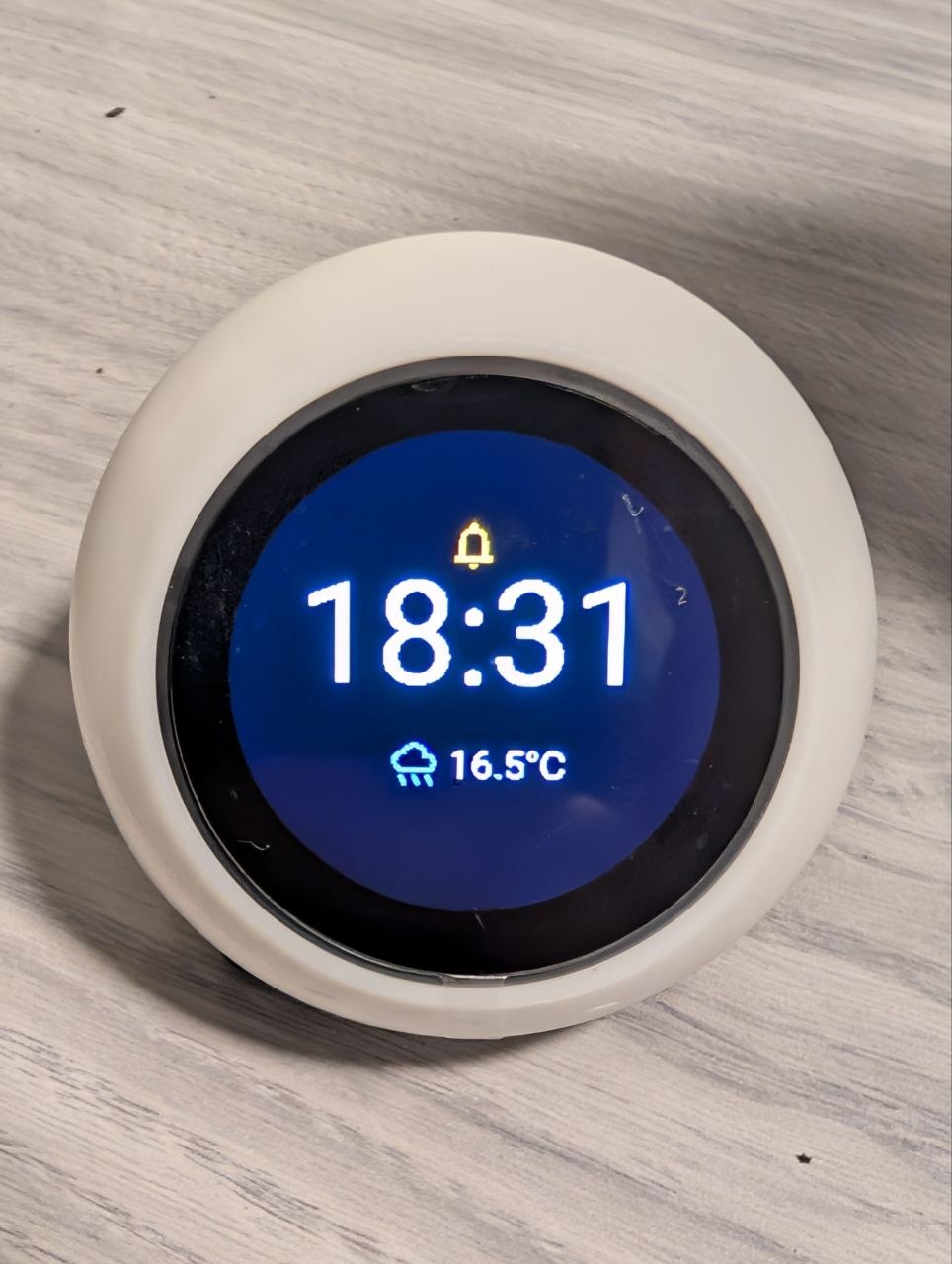

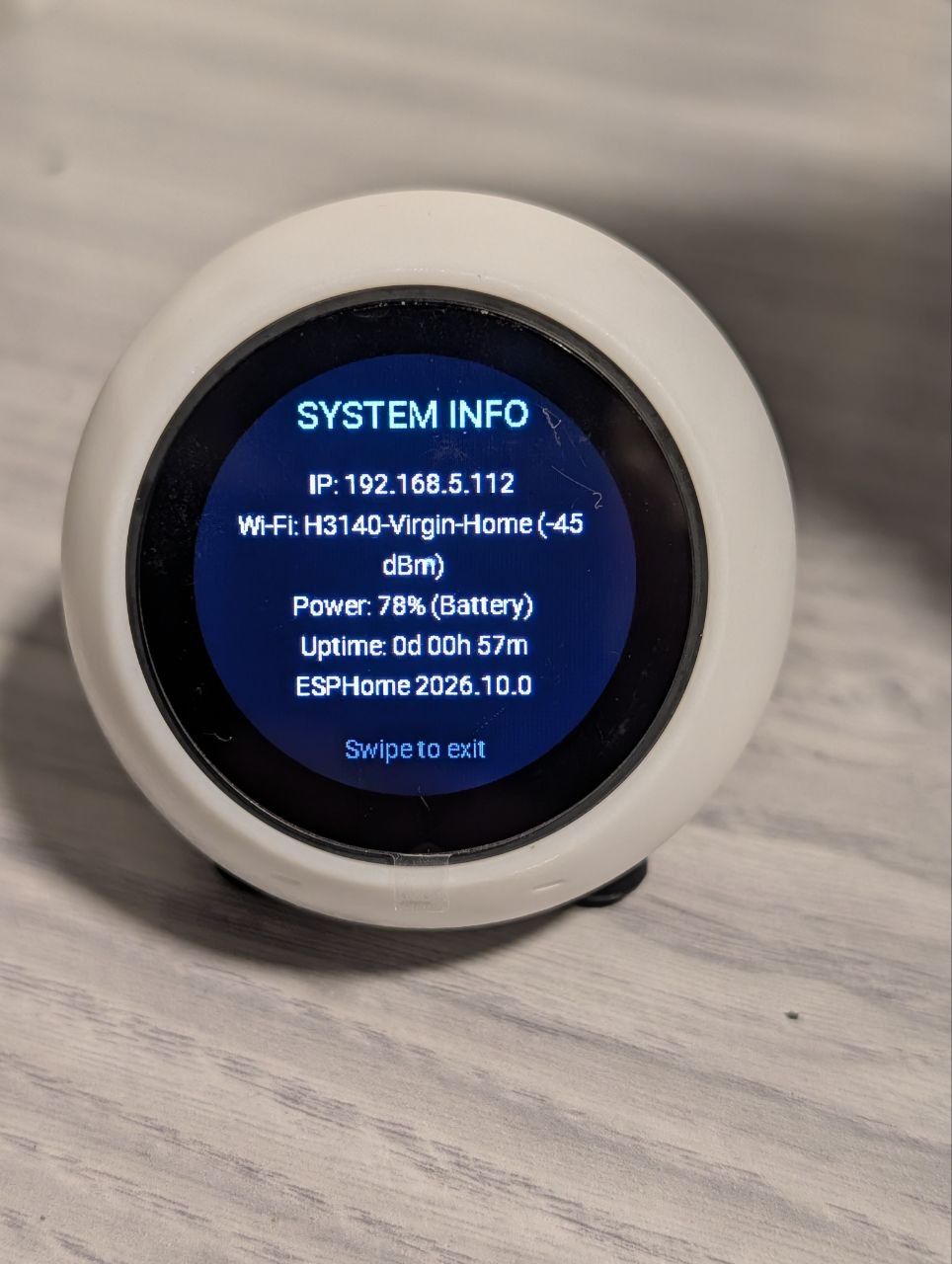

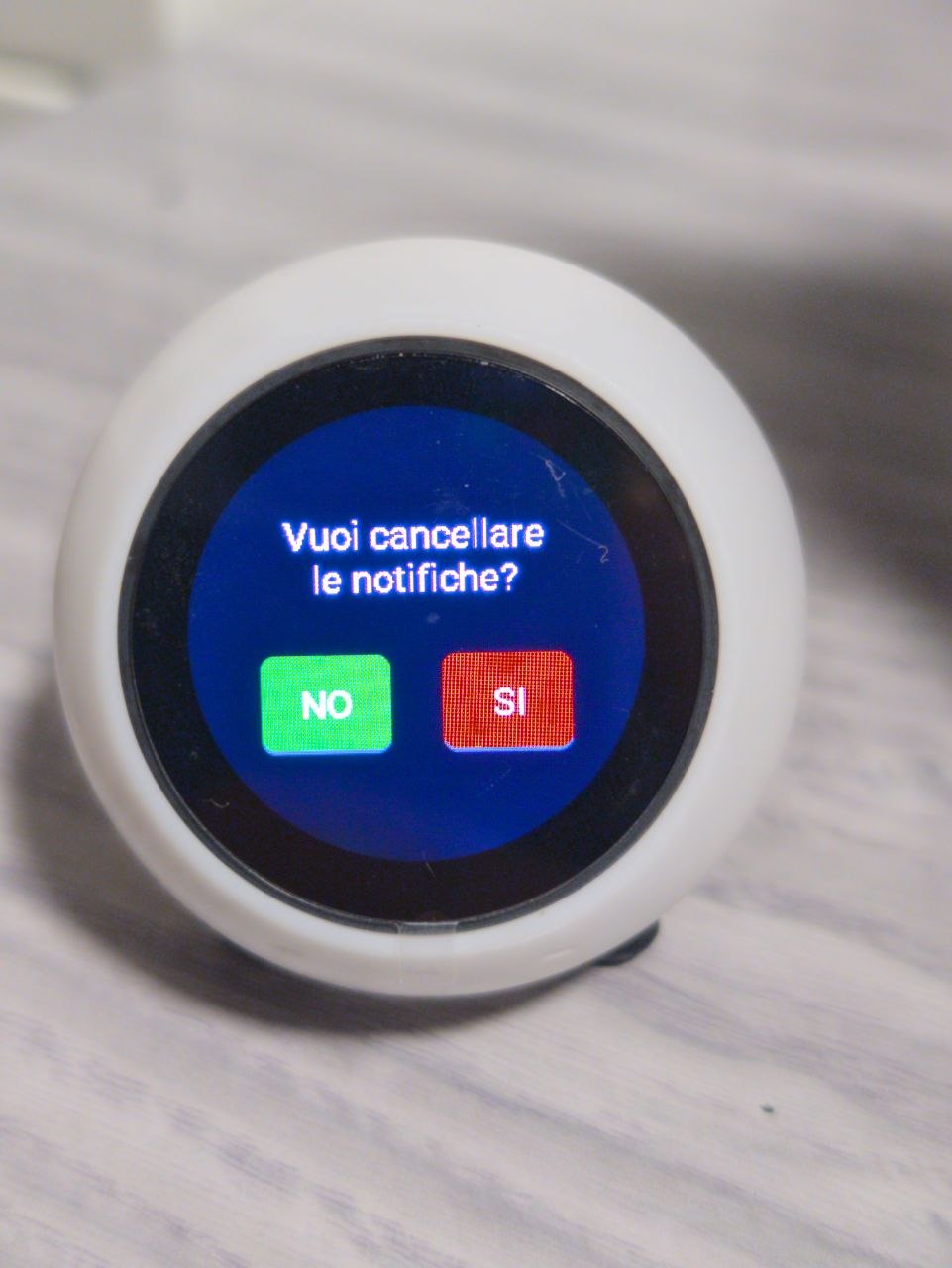

| 🕒 Standby Clock & Weather | 📬 Notification Card | 🗑️ Modal Confirmation | ⚙️ System Diagnostics |
|---|---|---|---|
| Event-driven clock with live rain/temp and unread alert badge | Preemptive LIFO alert with Material Symbol icon | Destructive action confirmation with color-coded safety buttons | IP address, Wi-Fi RSSI (dBm), battery gauge & uptime |
- ⚡ Quickstart Guide — How to configure and flash your SmartDisplay in under 3 minutes.
- 🔬 Hardware & Pinout Reference — Complete 19-GPIO table, power circuitry, board revisions warning, and stock firmware backup.
- 🏠 Home Assistant Integration — Action calls, automations, visual blueprint, and TTS announcements.
- 📡 Bluetooth Proxy & Plant Care — How to monitor Xiaomi Mi Flora sensors and BTHome beacons with passive BLE.
- ❓ Troubleshooting & FAQ — Common issues, Wi-Fi recovery, and circular UI clipping tips.
flowchart LR
HA["🏠 <b>Home Assistant</b>"]
SD["🔮 <b>Smart Display</b><br><i>(ESP32-S3)</i>"]
BLE["📡 <b>BLE Devices</b><br><i>(Sensors & Beacons)</i>"]
HA -->|"🔔 Notifications & Alerts"| SD
HA -->|"⛅ Weather & Time Sync"| SD
HA -->|"🔊 TTS Voice Stream"| SD
SD -->|"📶 Proxied BLE Telemetry"| HA
SD -->|"🔋 Battery & Diagnostics"| HA
BLE -->|"📡 Beacons & Sensor Data<br><i>(Xiaomi Flora, BTHome)</i>"| SD
| Component | Specification |
|---|---|
| SoC | Espressif ESP32-S3 (Dual-core 240MHz, 16MB Flash, 8MB Octal PSRAM) |
| Display | 1.28-inch circular IPS LCD (240x240, GC9A01A over 80MHz SPI) |
| Touch | CST816D capacitive touch controller (I2C) |
| Audio | Everest ES8311 DAC + onboard speaker with GPIO46 power gating |
| Power | 1S LiPo battery + USB-C charging + GPIO1 battery ADC + GPIO41 charging sensor |
